CONTAINER SPECIFICATIONS
At Jung Transworld, we are not only handing oversized cargo.
Regular container shipments are a very important part of our business.
These specifications are for 'standard' units and should be considered as guidelines only.
Other types, than the ones listed on this sheet, are available - please contact your nearest Jung Transworld office for further information.
CONTAINER SPECIFICATIONS
CONTAINER SPECIFICATIONS
|
20 DC |
40 DC |
40 HC |
45 HC |
| Internal length |
5,897MM |
12,301MM |
12,031MM |
13,555MM |
| Internal width |
2,348MM |
2,348MM |
2,348MM |
2,348MM |
| Internal height |
2,385MM |
2,385MM |
2,690MM |
2,690MM |
| Width at door |
2,337MM |
2,337MM |
2,337MM |
2,337MM |
| Height at door |
2,272MM |
2,272MM |
2,577MM |
2,577MM |
| Tare |
2,290KG |
3,770KG |
3,990KG |
4,880KG |
| Max payload |
21,710KG |
26,710KG |
26,490KG |
25,600KG |
| Volume |
33CBM |
67.4CBM |
76CBM |
85.6CBM |

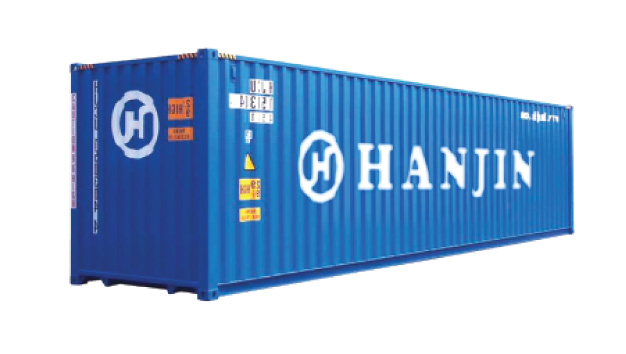

The most used units are the closed box containers (standard containers).
They are used for all kinds of cargo and made from either steel or aluminum.
The 40′ and 45' HC (High Cube) units are ideal for light, voluminous cargo.

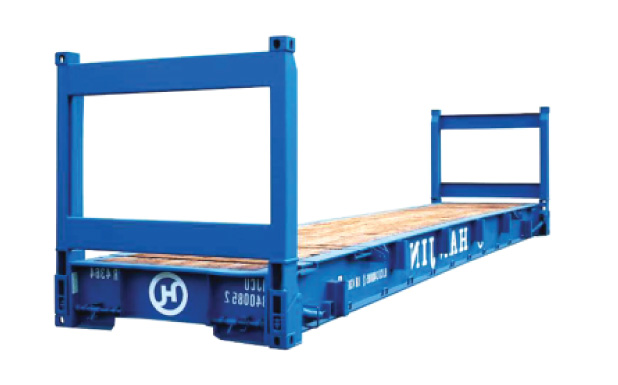

FLAT RACK CONTAINERS
FLAT RACK CONTAINERS
|
20 FR |
40 FR |
| Internal length |
5,958MM |
11,986MM |
| Internal width |
2,018MM |
2,236MM |
| Internal height |
2,077MM |
1,968MM |
| Width at door |
N/A |
N/A |
| Height at door |
N/A |
N/A |
| Tare |
2,720KG |
5,980KG |
| Max payload |
27,760KG |
39,020KG |
| Volume |
25CBM |
52.7CBM |
Flat Rack containers are used for heavy and oversized cargo, which cannot be loaded into a container with fixed walls and hence needs loading from top or side.
Flat Rack containers can be delivered with both fixed and collapsible walls.

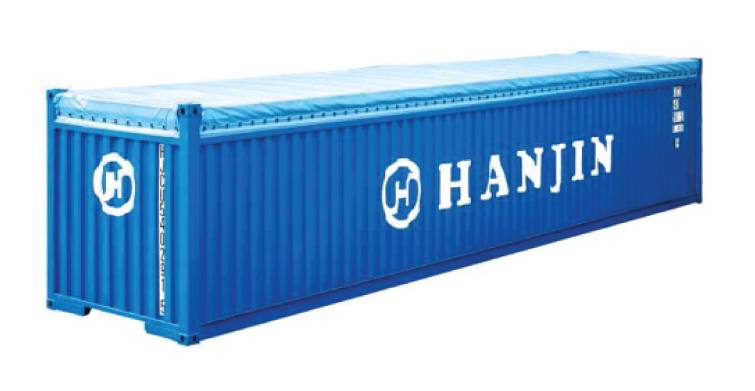

OPEN TOP CONTAINERS
OPEN TOP CONTAINERS
|
20 OT |
40 OT |
| Internal length |
5,898MM |
12,022MM |
| Internal width |
2,346MM |
2,346MM |
| Internal height |
2,354MM |
2,381MM |
| Width at door |
2,338MM |
2,337MM |
| Height at door |
2,244MM |
2,244MM |
| Tare |
2,450KG |
4,020KG |
| Max payload |
21,550KG |
26,460KG |
| Volume |
32.6CBM |
66.4CBM |
Open top containers are often used for heavy machinery which requires loading by crane (from top).
They are fitted with a tarpaulin (some with a hard-top) and the door header can in most cases be removed.

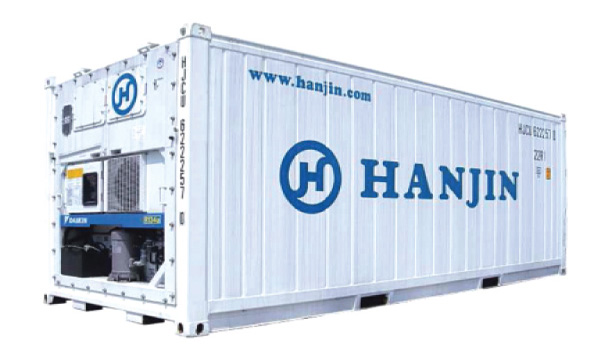

REEFER CONTAINERS
REEFER CONTAINERS
|
20 RF |
40 RF |
| Internal length |
5,455MM |
11,583MM |
| Internal width |
2,290MM |
2,290MM |
| Internal height |
2,262MM |
2,538MM |
| Width at door |
2,290MM |
2,290MM |
| Height at door |
2,227MM |
2,508MM |
| Tare |
2,960KG |
4,800KG |
| Max payload |
21,040KG |
27,700KG |
| Volume |
28.3CBM |
67.3CBM |
Reefer containers are the ideal solution for storage or transportation of cargos that need cooling, heating or freezing, such as meat, fish and fruit.
Reefer containers are manufactured to preserve the temperature inside the container at the desired level.
